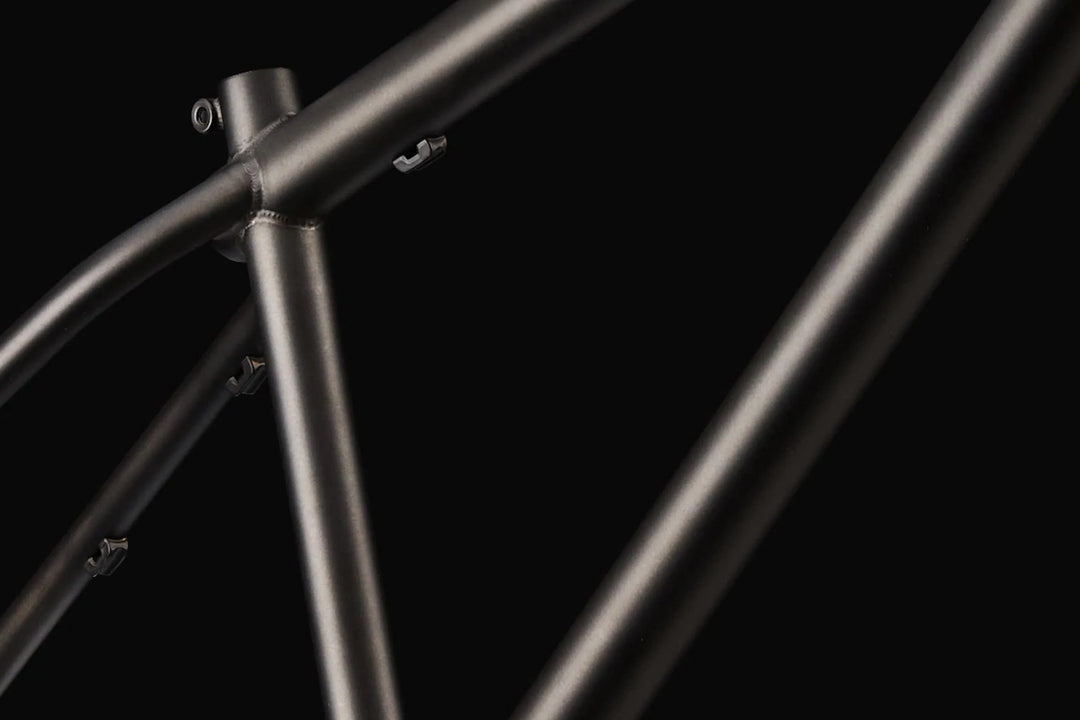

Steel Is Real
The Faction 2 frame is is constructed out of Reynolds 520 steel tubing to provide strength and durability.
Build Your Faction 2

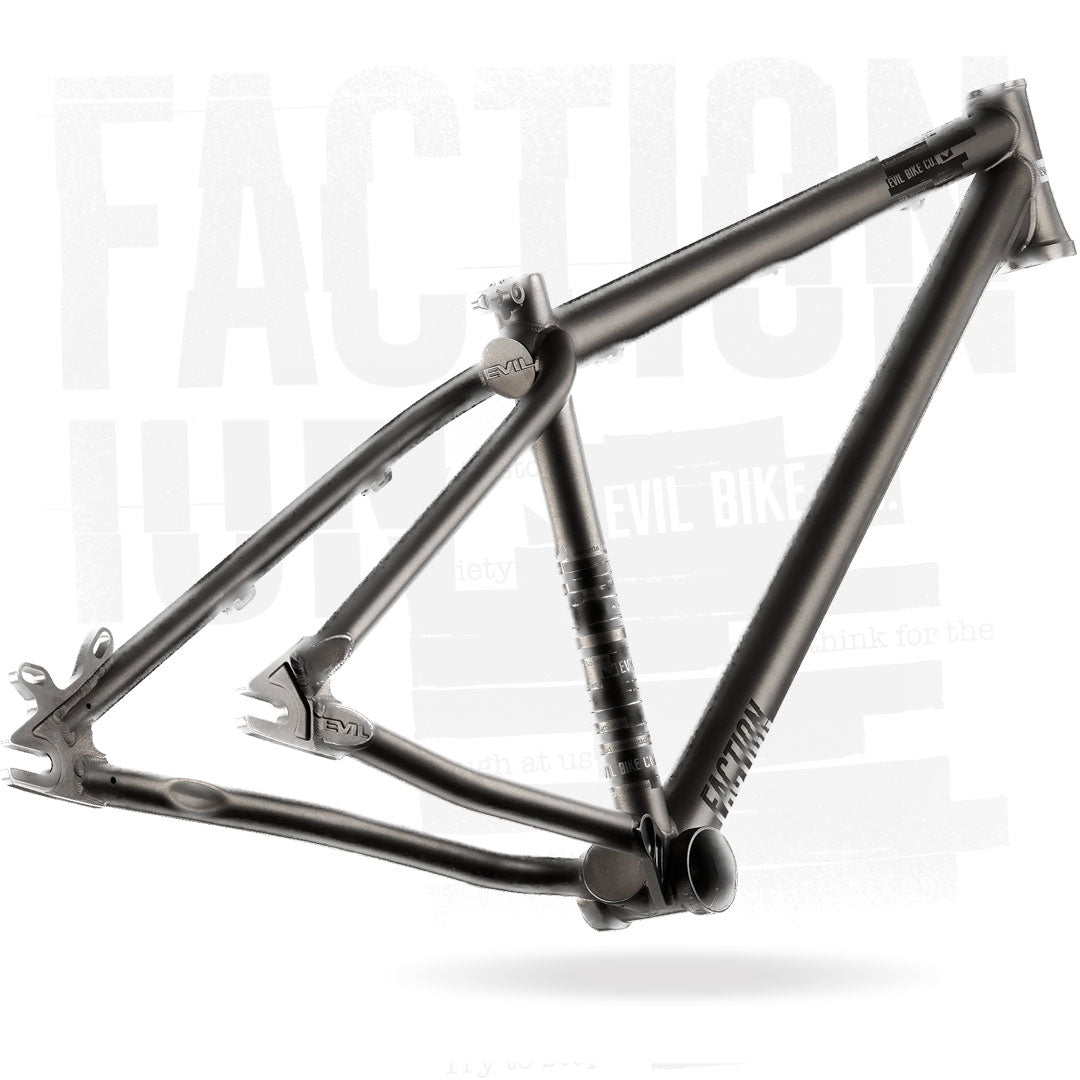

$843.00 CADThe hard tail workhorse that's ready to shred the trail, park or dirt jumps has been resurrected with a tapered head tube, increased head tube and stack height, horizontal dropouts and ready for BMX style mid bottom bracket. Be the shadows in the streets and style on the dirt with the all new Faction 2.
Feature
01
Feature
02

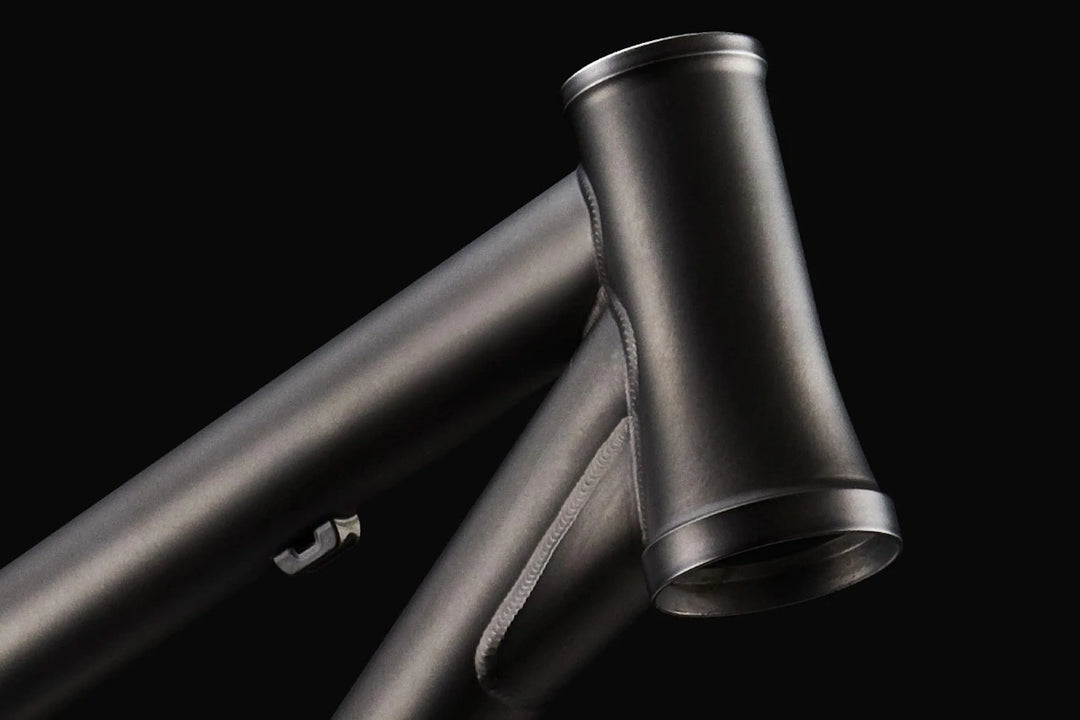

Tapered Head Tube
A new taller tapered head tube to fit modern dirtjump forks and give you that boost you were looking for.
Feature
03

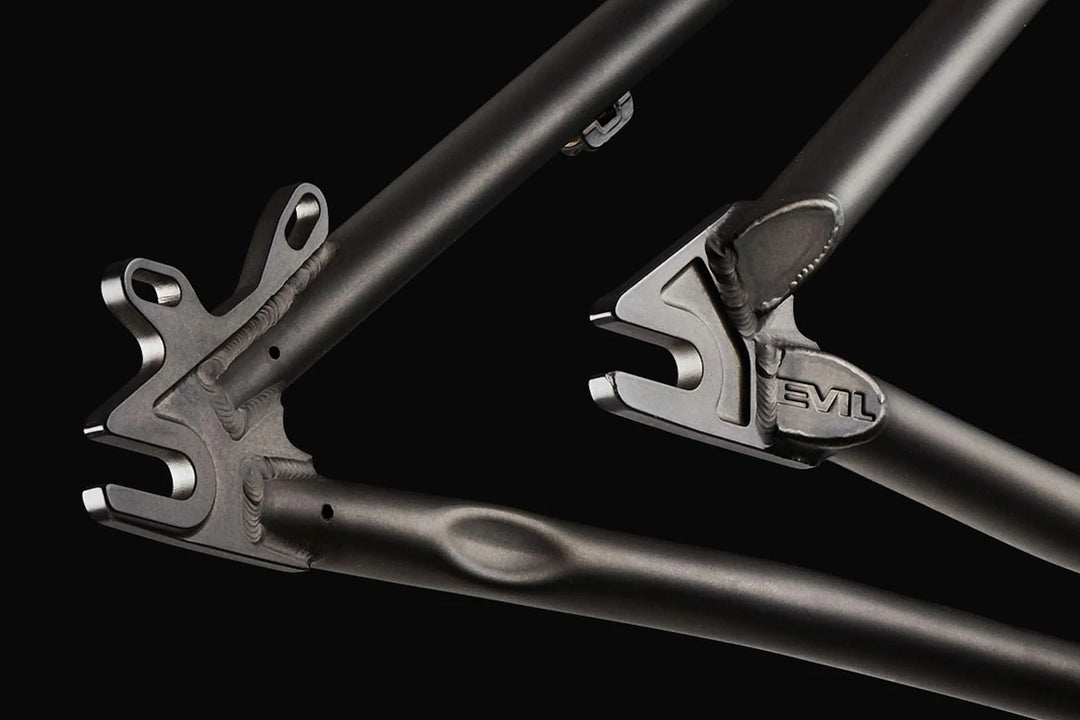

BMX-Style Horizontal Dropouts
BMX style horizontal dropouts and mid BB bottom bracket.
Geo
| Frame Geo | Small | Medium | Large |
|---|---|---|---|
| A - Head Angle | 69.5° | 69.5° | 69.5° |
| B - Seat Tube Angle | 71.5° | 71.5° | 71.5° |
| C - Virtual Top Tube Length | 580mm | 22.8" | 590mm | 23.2" | 605mm | 23.8" |
| D - Seat Tube Length | 320mm | 12.6" | 320mm | 12.6" | 320mm | 12.6" |
| E - Bottom Bracket Height | 323mm | 12.7" | 323mm | 12.7" | 323mm | 12.7" |
| F - Head Tube Length | 115mm | 4.5" | 115mm | 4.5" | 115mm | 4.5" |
| G - Chain Stay Length Min | 381mm | 15.0" | 381mm | 15.0" | 381mm | 15.0" |
| G - Chain Stay Length Max | 397mm | 15.6" | 397mm | 15.6" | 397mm | 15.6" |
| H - Wheel Base Min | 1016mm | 40.0" | 1026mm | 40.4" | 1041mm | 41.0" |
| H - Wheel Base Max | 1032mm | 40.6" | 1042mm | 41.0" | 1057mm | 41.6" |
| J - Axle to Crown | 482mm | 482mm | 482mm |
| K - Offset | 40mm | 40mm | 40mm |
| Stack | 521mm | 20.5" | 521mm | 20.5" | 521mm | 20.5" |
| Reach | 389mm | 15.3" | 399mm | 15.7" | 414mm | 16.3" |
| Sizing | 5'0"-5'7" | 5'7"-6'1" | 6'1"-6'4" |
Fit
| Component Sizing | Small | Medium | Large |
|---|---|---|---|
| Stem Length | 35-50mm | 35-50mm | 35-50mm |
| Stem Rise | 0°-5° | 0°-5° | 0°-5° |
| Handlebar Rise | 35mm-50mm | 35mm-50mm | 35mm-50mm |
| Handlebar Width | 710mm-800mm | 710mm-800mm | 710mm-800mm |
| Crank Length | 170mm | 170mm | 170mm |
| Sizing | 5'0"-5'7" | 5'7"-6'1" | 6'1"-6'4" |
Specs
- Available Sizes
- Small, Medium, Large
- Frame
- Reynolds 520 Steel in Black Rust
- Fork Axle to Crown Length
- 482mm
- Fork Offset
- 40mm
- Headtube
- Tapered 1 1/8" - 1 1/2"
- Headset
- FSA NO.42/ACB, Upper 42mm, Lower 52mm
- Seatpost Diameter
- 27.2mm
- Rear Wheel Diameter
- 26"
- Maximum Rear Tire Size
- 26" x 2.3" (Varies by Brand)
- Bottom Bracket Shell
- Mid BB
- Chainline
- 50mm
- Chainguide Mount
- N/A
- Maximum Chainring Size
- 28T Single Ring
- Rear Wheel Spacing
- 135mm x 10mm
- Brake Mount Type
- IS Standard
- Maximum Rear Rotor Size
- 160mm
Faq
What size Spindle does the Faction use when running BMX style cranks?
The Faction works best with 153mm/6″spindles.
What size is the seat post?
The Faction 2 uses a 27.2mm seat post and has an integrated seat clamp.
What is the warranty on the Faction 2?
3 Year limited warranty
What type of headset does the Faction 2 use?
The Faction uses a FSA NO.42/ACB, Upper 42mm, Lower 52mm headset.
