Epocalyptic lightning RIDES
The electrified Epocalypse is your tractor beam to the summit. This long travel overlander is prepped for the end of days, placing direct current between your heels to turn the steepest ascents into provocative dares.
THE EPOCALYPSE
Inspired by our beloved Wreckoning platform, the battery boosted Epocalypse rides above two 29” wheels with 166mm of rear travel and 170mm below the bars. Posture for this genre-fluid beast closely resembles that of the Wreckoning for a proper dance party deep in the trees. The geometry teeter totter is well balanced across the Evil family tree and the Epocalypse drops into a cozy branch alongside its gravity kin.
Epocalyptic lightning flows into a low-slung Shimano EP801 motor to kick out 85Nm of pedal assistance at full throttle, backed by the brand’s burly 630Wh battery for max laps. Spin it up and let the good times rip! The motor’s trail-hugging heft will dig those rubber lugs in deep for unshakable stability and traction.
EVIL THUNDER, SHIMANO LIGHTNING
Between the juiced watts and the pedaling prowess of our DELTA System, few ascents will tilt too steep for the Epocalypse. Electrified bikes are a blast whether gravity's helping or hindering, and the engineers at Evil worked closely with Shimano to achieve an ideal power balance. Good luck locating a slope that the Epocalypse can't scale. After two years of rigorous testing and perfecting we’ve created the right machine for any rider's version of fun.

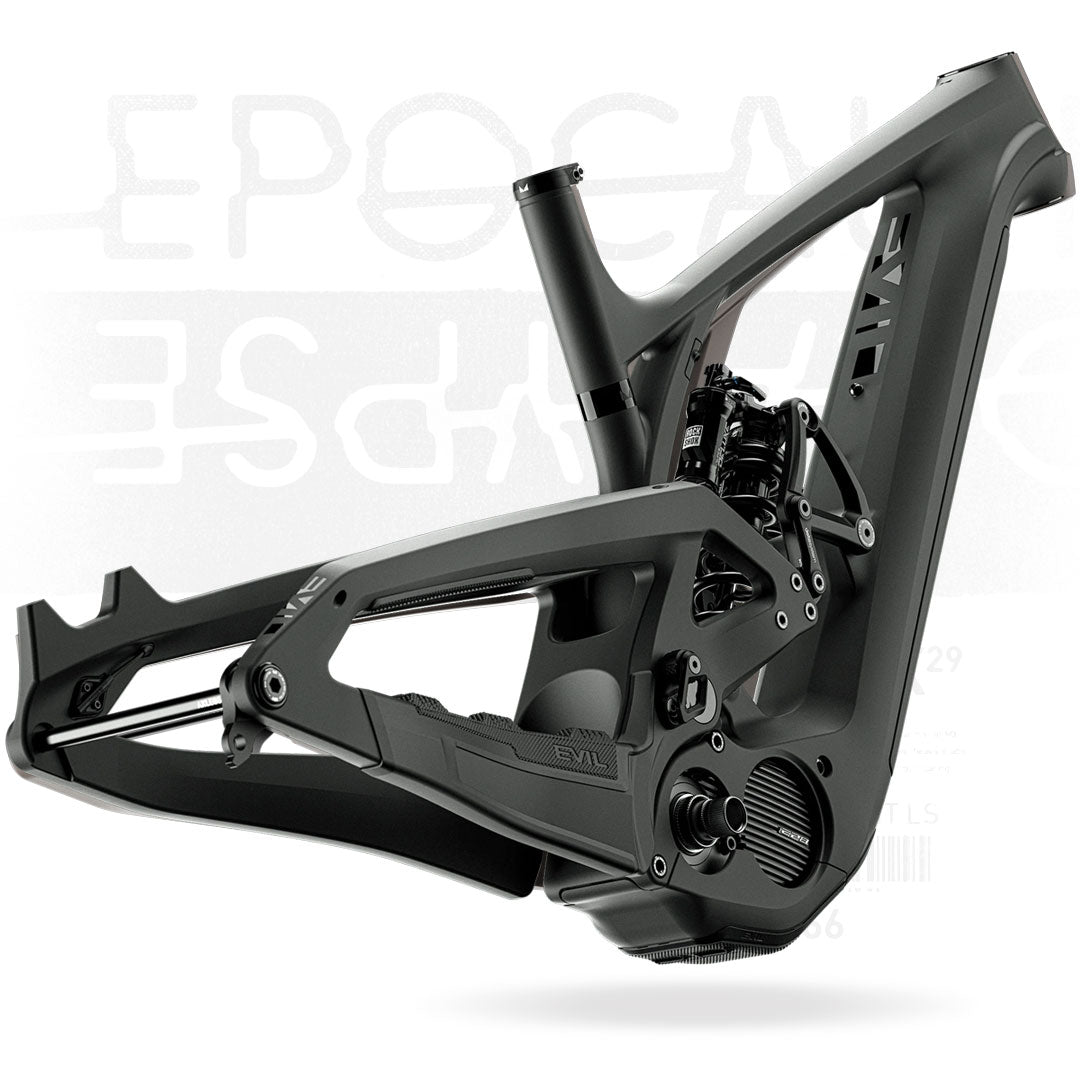

A pair of sturdy carbon triangles surrounds the EP801 powerhouse, protected from front tire projectiles by a custom skid plate beneath the motor and a shuttle shield under the downtube. As ever, chain slap is silenced by a hefty sound mound strip on the chain stay, and there's a second slab of "shut-up" inside the seat stay.
Our refined vascular system guides housing and hoses discretely through the frame, and some massive main-pivot bearings are ready to carry the powerful Epocalypse load all season long. A SRAM UDH derailleur hanger dangles from our SuperBoost+ rear end, keeping those precious drivetrain bits shifty, and hangers are available at most shops if you manage to clip a passing rock. In fact, each of the bike's electric and analog components can be had at your local two-wheel Evil dealer, keeping the ride rolling and the maintenance time minimal. As an added bonus, Evil will offer lifetime bearing warranty for your fresh electric frame. Original owners can register their bikes on the Evil website. See our warranty site for more details to keep those pivots silky smooth.
THE DEVIL IS
IN THE DETAILS
THE DEVIL IS
IN THE DETAILS
IN THE DETAILS

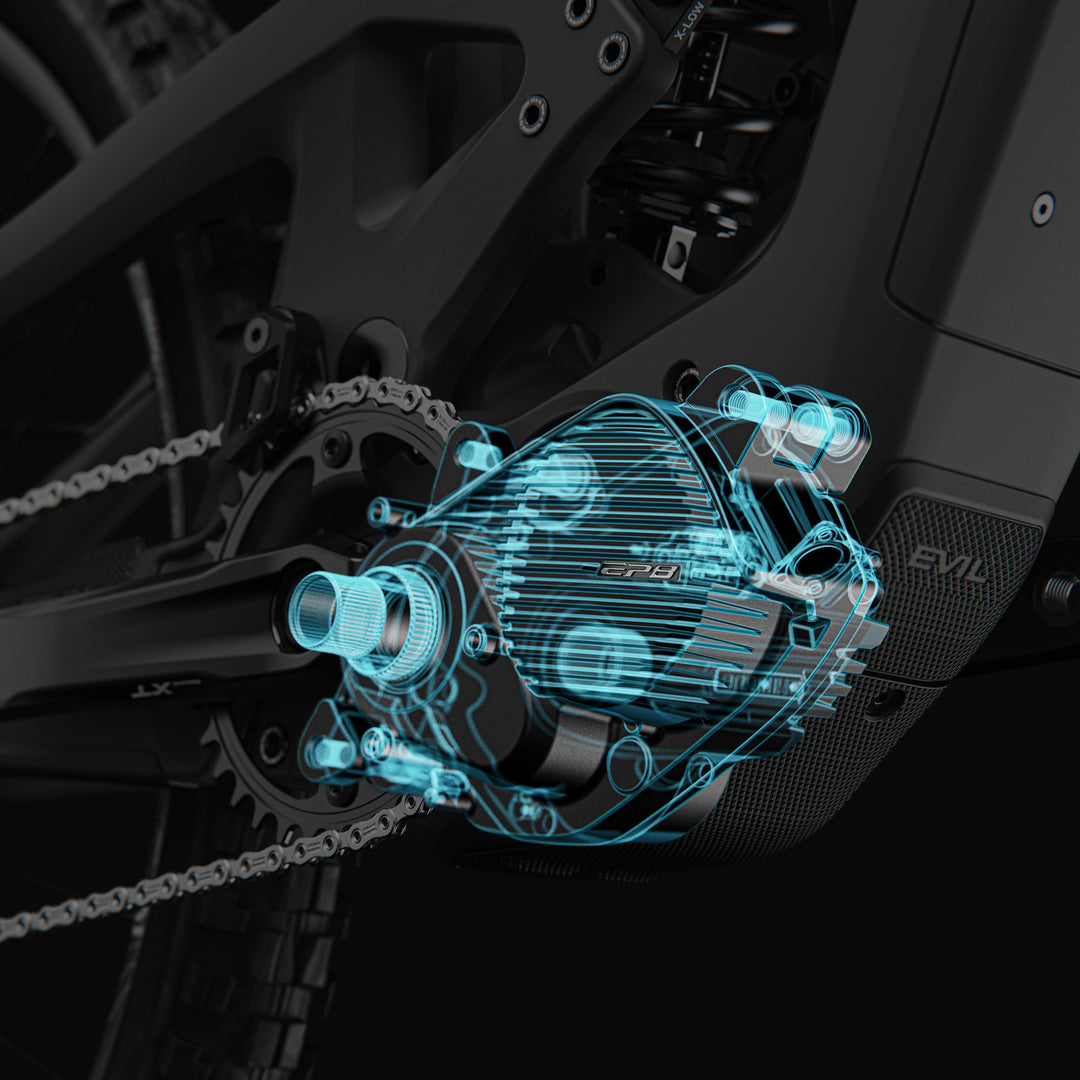

85NM OF MUSCLE
At the heart of the Epocalypse, a Shimano EP801 motor pumps up to 85Nm of torque into the pedals. This latest power source from Shimano is lighter, faster, smaller, smoother, and more efficient than the previous E8000.

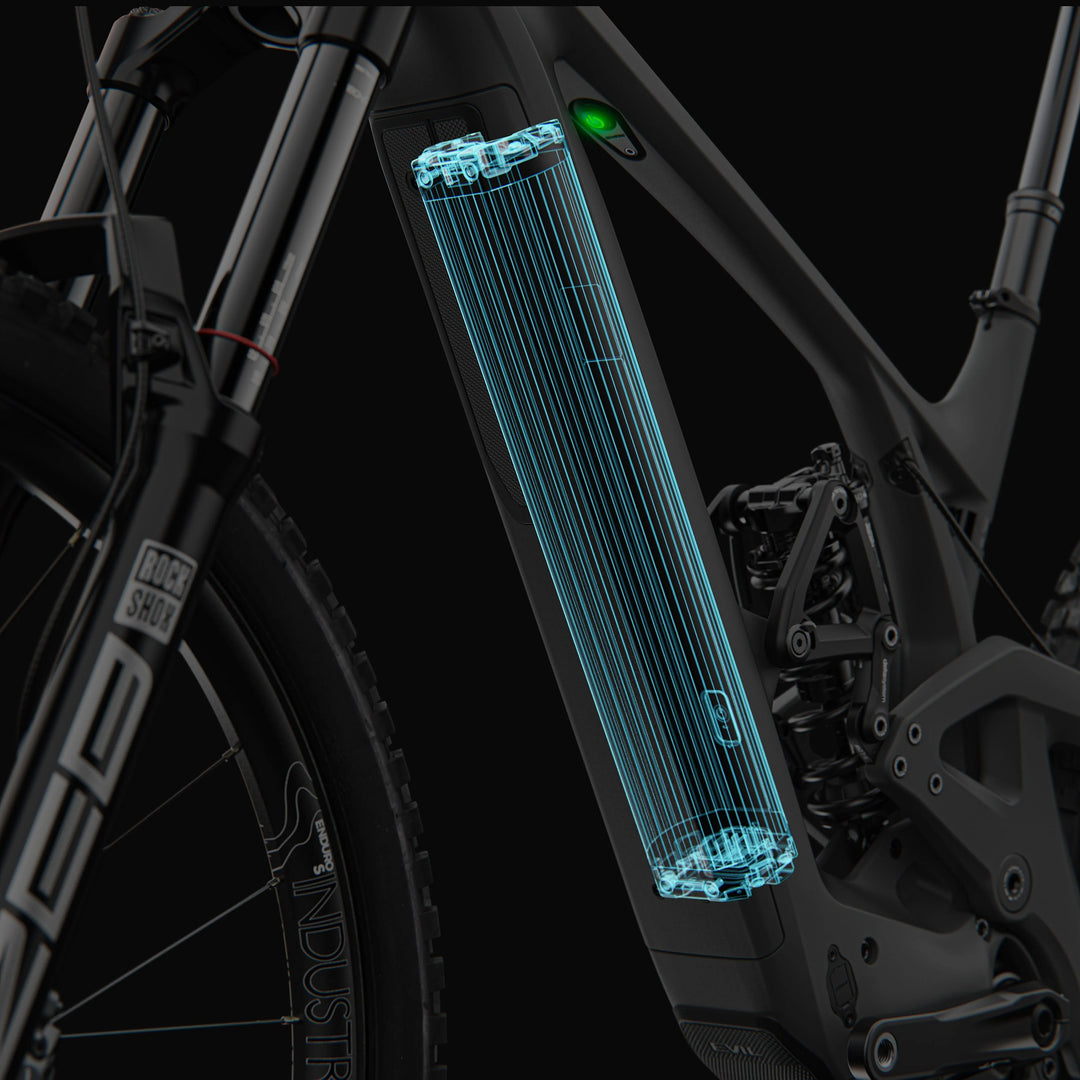

630WH JUICEBOX
630Wh of integrated battery power nails the intersection where maximum riding range and minimum weight collide. How those watts are burned or conserved is entirely up to you.
PICK YOUR POISON

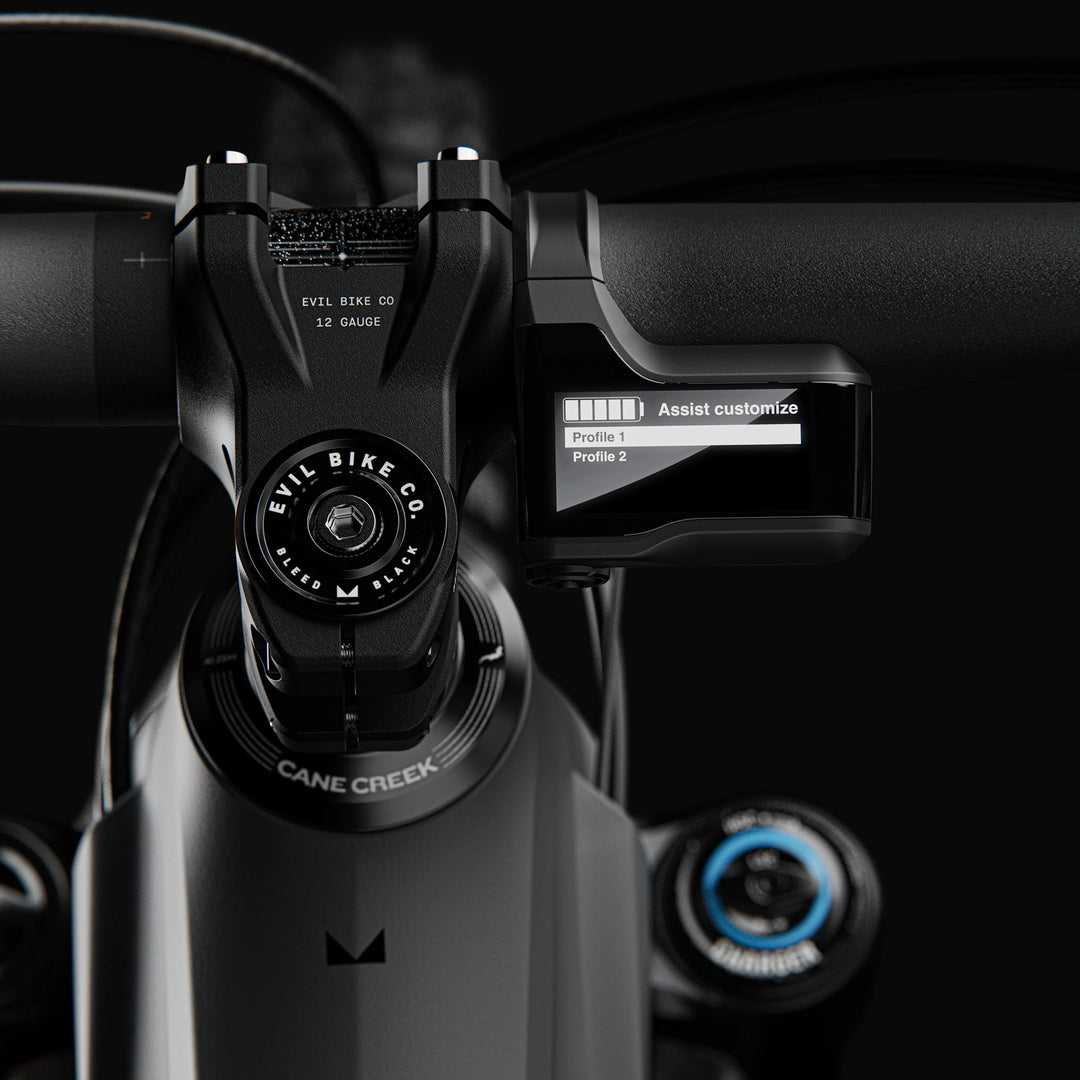

An Evil-tuned EP801 motor offers two power profiles to rip with. For moto-minded go getters, Profile 1 cranks out maximum Epocalyptic watts. Riders with a little range anxiety will dig Profile 2, designed around more conservative power output so you can go the distance without the fear of unplanned camping.

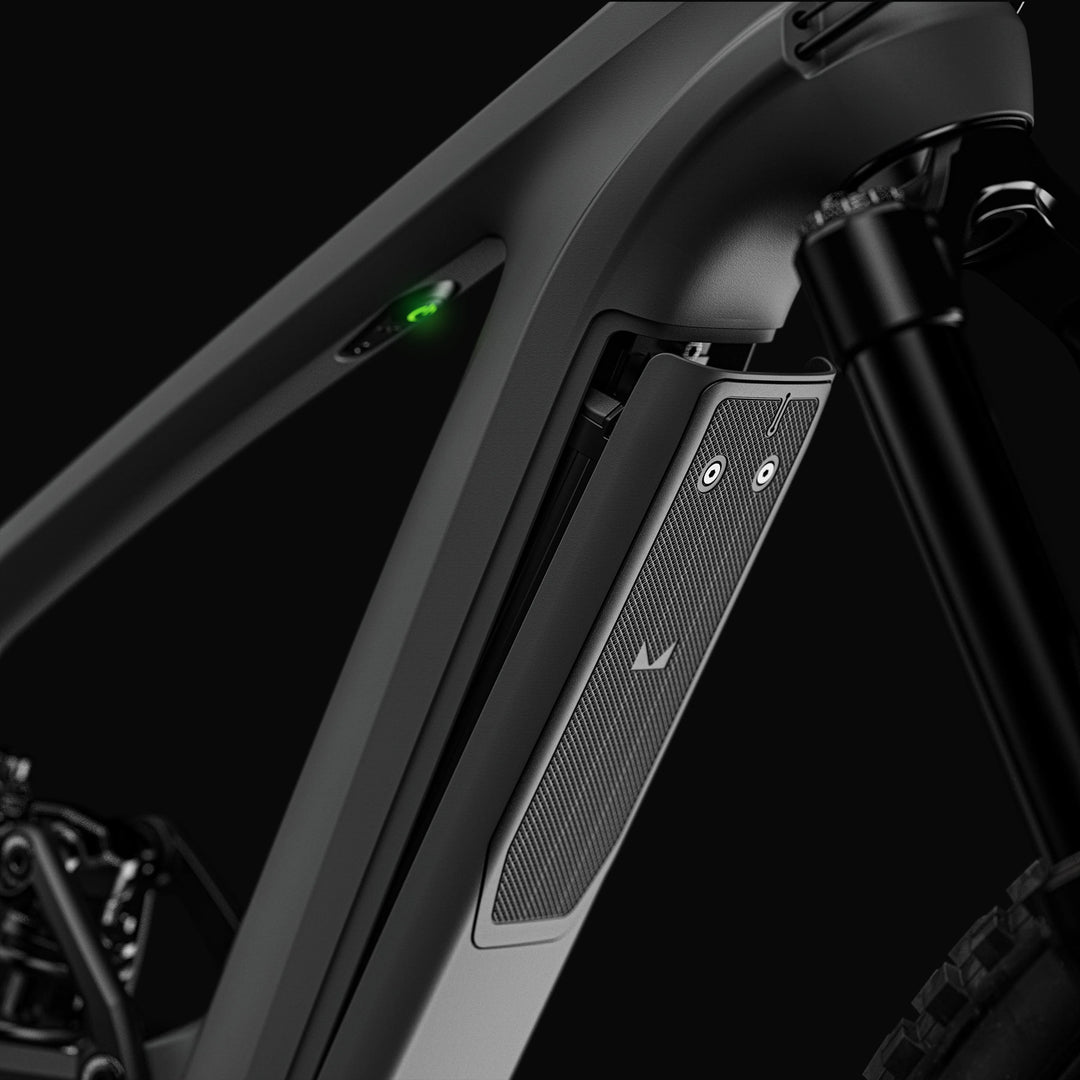

10 SECOND PIT STOPS
Our fully integrated battery design keeps the electric bits protected inside the downtube, while quick release access makes for ten second battery swaps through a covert slot in the downtube door. Faster pit stops means more laps.

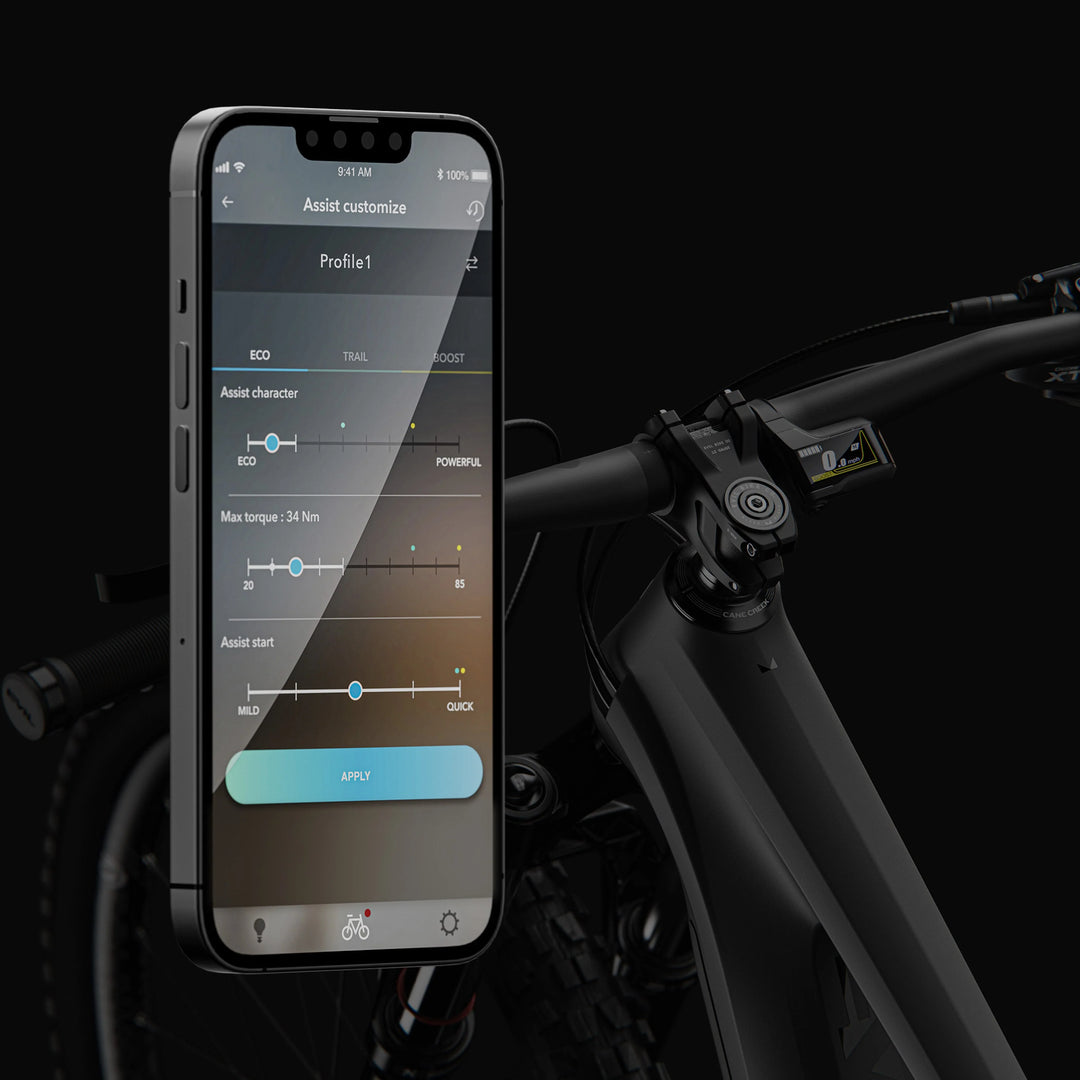

E-TUBE MOBILE APP
Not finding those perfect settings for your style of riding? Download the Shimano E-Tube Project mobile app to dial in the support modes and torque settings for a truly custom experience.

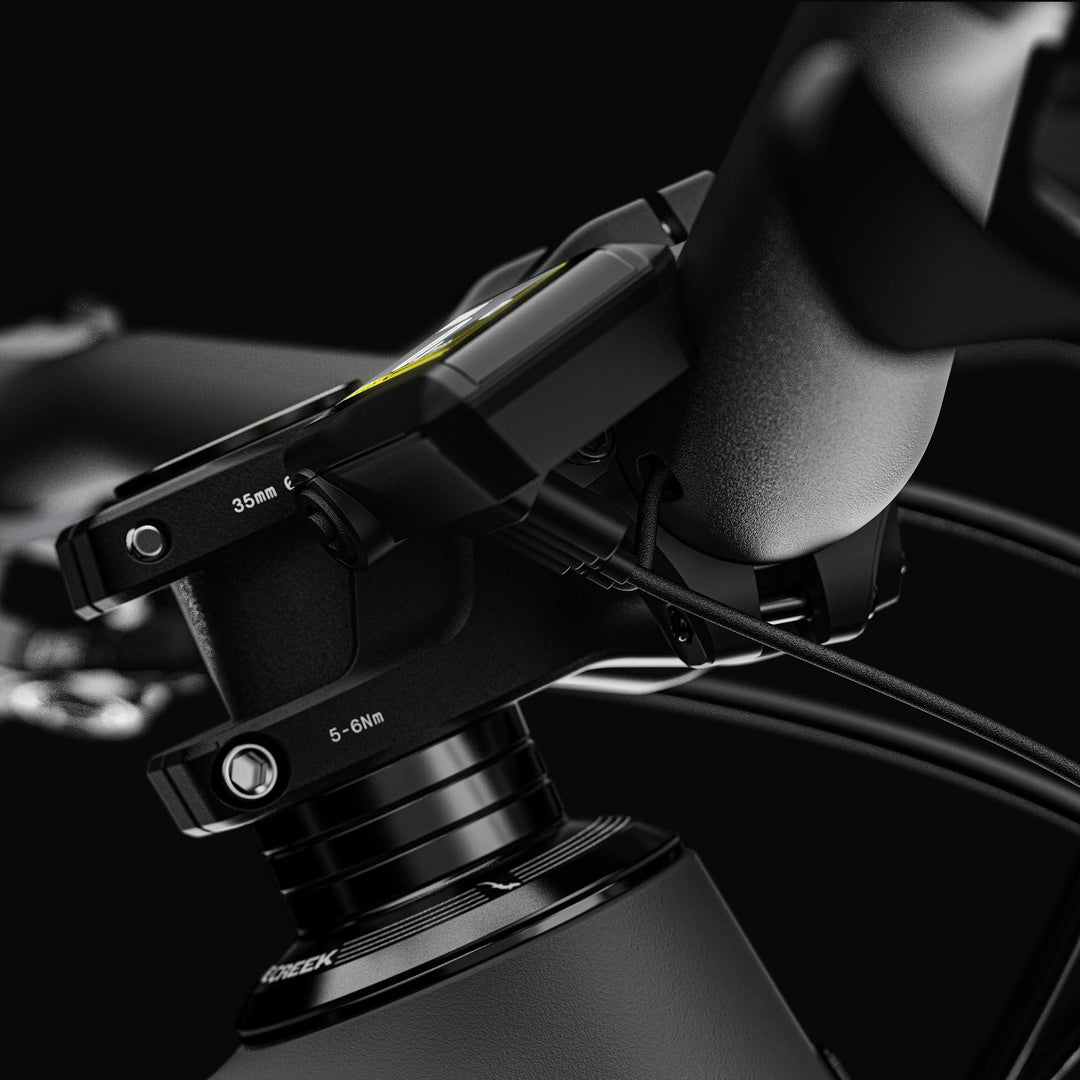

EVIL ENERGY BAR
Evil has introduced a custom 35mm carbon bar with internal wire routing to clean up the cockpit and keep you focused on the fun stuff. The discreet Energy Bar is shaped with a 35mm rise, 5° upsweep, 8° backsweep and accommodates a 760-810mm width range.

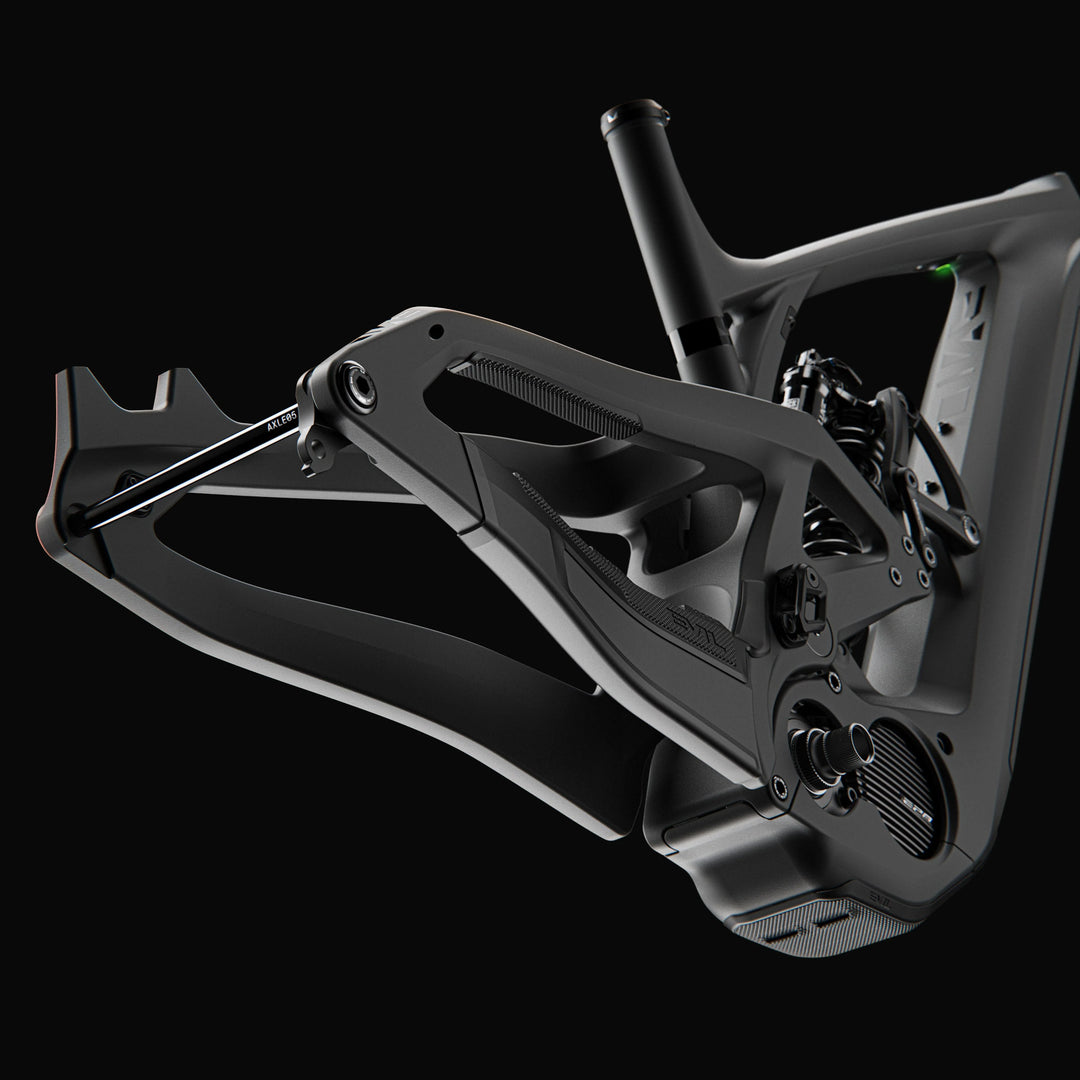

WHEELIE SHORT CHAINSTAYS
The newly developed split-yoke design lets us maintain short 442mm chainstays, allowing riders to maneuver through impossibly technical climbs and easily pull up for manuals and trail hits. Pairing this with a wider main pivot and a unified one-piece rear triangle means increased stiffness and strength so you can flex on your riding partners instead of your bike.

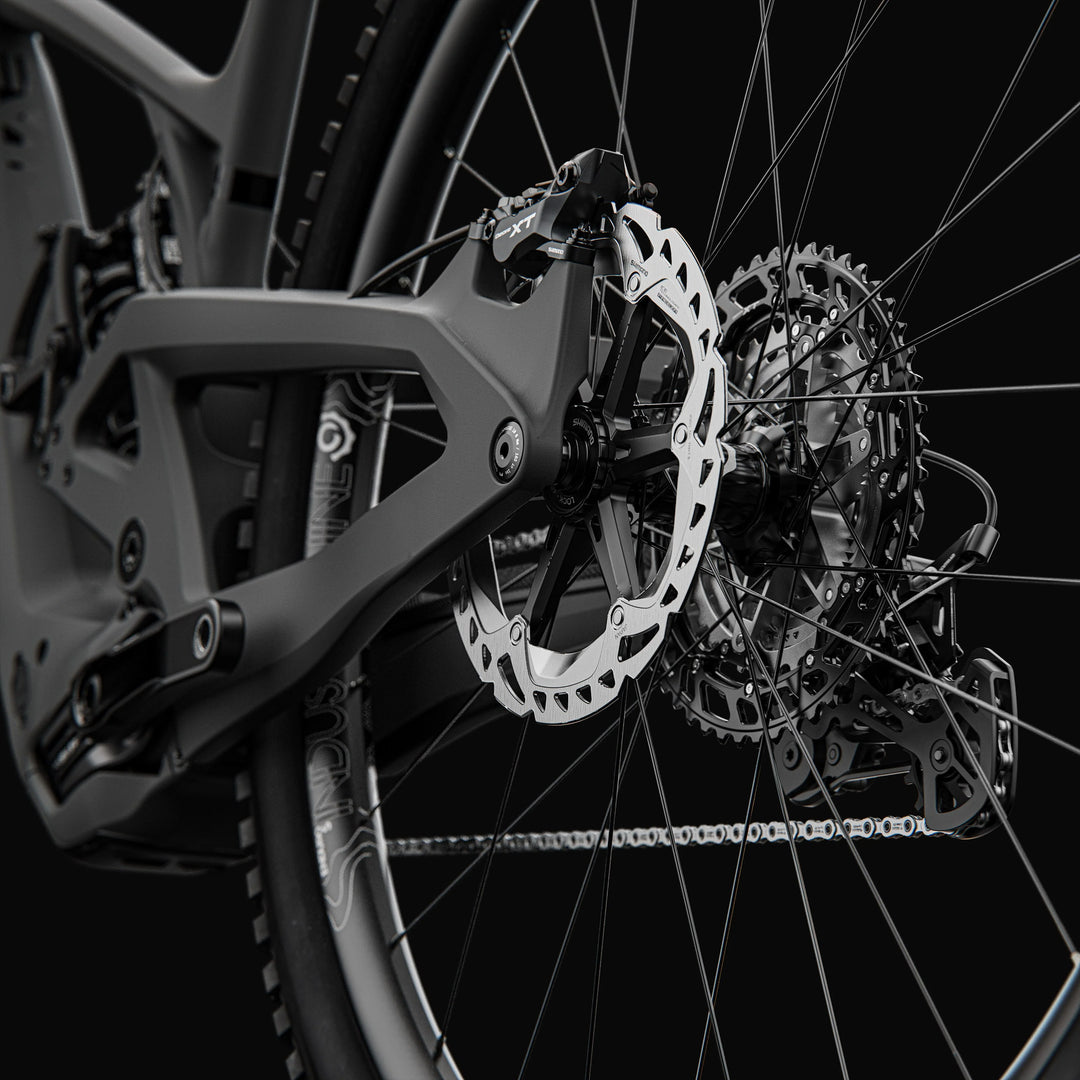

SUPERBOOST+ STIFFNESS
A wide 157mm dropout spacing allows us to get a broader, stiffer spoke pattern, and a wider swingarm so the added weight near the bottom bracket doesn’t turn the rear end into a pool noodle. This rear end design was driven to support tire clearance around a 29 x 2.6” tread, allowing you all the rubber you need to keep the wheels on the ground without sacrificing that playful rear end feel.

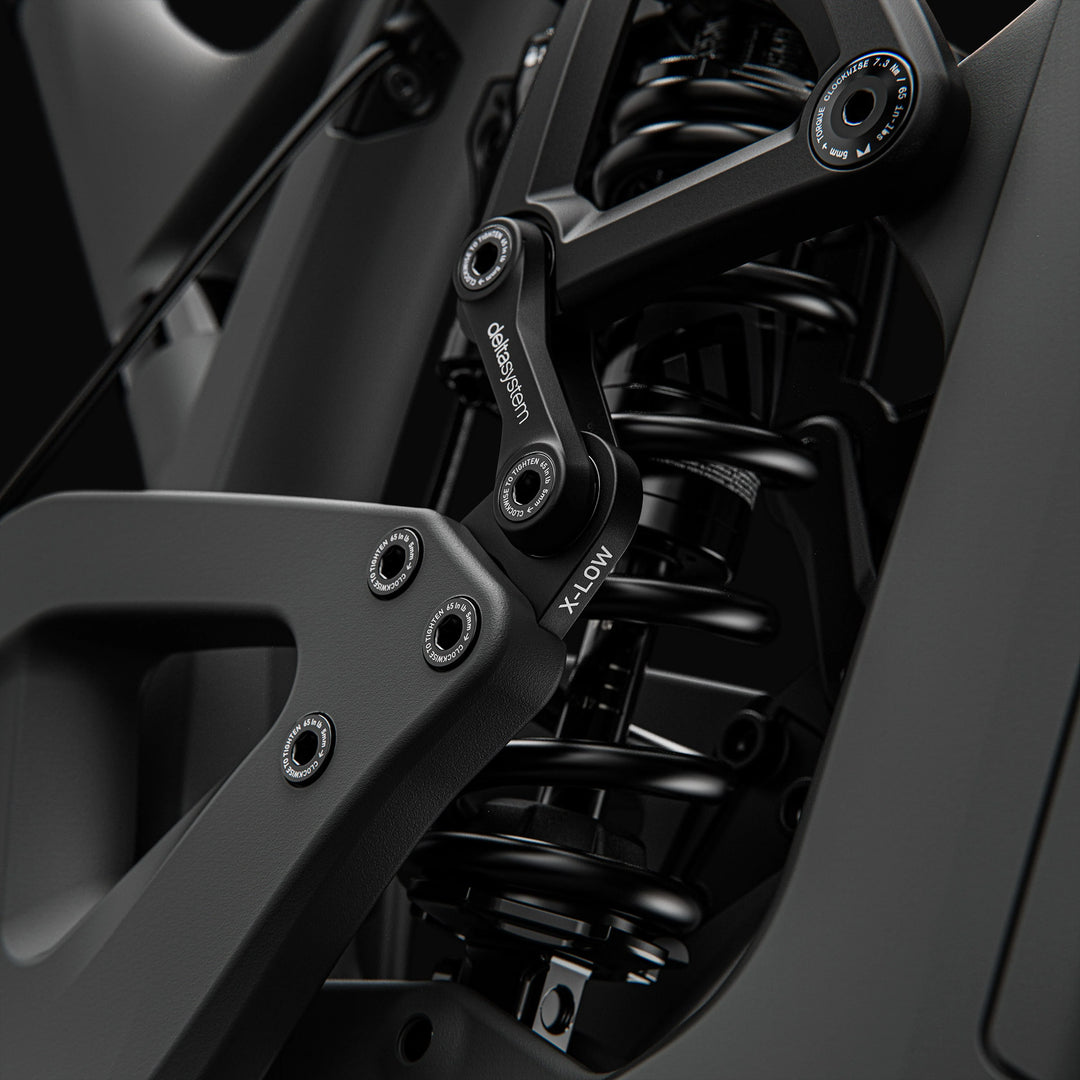

FLIP CHIPS
In the rare case you find yourself a little too over the bars, we’ve added our flip chip capability that Evil fans know and love. Flipping the chips lowers your bottom bracket and slackens the front end for a more aggressive stance without changing that signature DELTA leverage curve.
| GEOMETRY | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| A - Head Tube Angle - LOW | 65.3° | 65.3° | 65.3° | 65.3° |
| A - Head Tube Angle - XLOW | 64.6° | 64.6° | 64.6° | 64.6° |
| B - Seat Tube Angle - LOW | 77° | 77° | 77° | 77° |
| B - Seat Tube Angle - XLOW | 76.4° | 76.4° | 76.4° | 76.4° |
| C - Virtual Top Tube Length - LOW | 596mm | 23.46" | 613mm | 24.13" | 635mm | 25.00" | 656mm | 25.83" |
| C - Virtual Top Tube Length - XLOW | 599mm | 23.58" | 616mm | 24.25" | 638mm | 25.12" | 659mm | 25.94" |
| D - Seat Tube Length | 390mm | 15.35" | 425mm | 16.73" | 460mm | 18.11" | 495mm | 19.49" |
| E - Bottom Bracket Height - LOW | 350mm | 13.78" | 350mm | 13.78" | 350mm | 13.78" | 350mm | 13.78" |
| E - Bottom Bracket Height - XLOW | 341mm | 13.43" | 341mm | 13.43" | 341mm | 13.43" | 341mm | 13.43" |
| F - Bottom Bracket Drop - LOW | 23mm | 0.91" | 23mm | 0.91" | 23mm | 0.91" | 23mm | 0.91" |
| F - Bottom Bracket Drop - XLOW | 32mm | 1.24" | 32mm | 1.24" | 32mm | 1.24" | 32mm | 1.24" |
| G - Head Tube Length | 104mm | 4.09" | 114mm | 4.49" | 127mm | 5.00" | 139mm | 5.47" |
| H - Chain Stay Length - LOW | 442mm | 17.40" | 442mm | 17.40" | 442mm | 17.40" | 442mm | 17.40" |
| H - Chain Stay Length - XLOW | 444mm | 17.49" | 444mm | 17.49" | 444mm | 17.49" | 444mm | 17.49" |
| I - Wheel Base - LOW | 1210mm | 47.64" | 1231mm | 48.46" | 1257mm | 49.49" | 1282mm | 47.89 |
| I - Wheel Base - XLOW | 1212mm | 47.72" | 1233mm | 48.54" | 1259mm | 49.57" | 1284mm | 50.55 |
| J - Axle to Crown | 571mm | 22.48" | 571mm | 22.48" | 571mm | 22.48" | 571mm | 22.48" |
| K - Offset | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" |
| L - Front to Center - LOW | 771mm | 30.35" | 792mm | 31.18" | 818mm | 32.20" | 843mm | 33.19" |
| L - Front to Center - XLOW | 771mm | 30.35" | 792mm | 31.18" | 818mm | 32.20" | 843mm | 33.19" |
| M - Trail - LOW | 129mm | 5.06" | 129mm | 5.06" | 129mm | 5.06" | 129mm | 5.06" |
| M - Trail - XLOW | 133mm | 5.25" | 133mm | 5.25" | 133mm | 5.25" | 133mm | 5.25" |
| N - Stack - LOW | 620mm | 24.14" | 630mm | 24.80" | 643mm | 25.31" | 655mm | 25.79" |
| N - Stack - XLOW | 625mm | 24.61" | 635mm | 25.00" | 648mm | 25.51" | 660mm | 25.98" |
| O - Reach - LOW | 445mm | 17.52" | 462mm | 18.19" | 482mm | 18.98" | 502mm | 19.76" |
| O - Reach - XLOW | 438mm | 17.24" | 455mm | 17.91" | 475mm | 18.70" | 495mm | 19.49" |
| P - Standover - LOW | 719mm | 28.31" | 719mm | 28.31" | 719mm | 28.31" | 727mm | 28.39" |
| P - Standover- XLOW | 713mm | 28.07" | 713mm | 28.07" | 713mm | 28.07" | 721mm | 28.39" |
| GEOMETRY | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| A - Head Tube Angle - LOW | 64.5° | 64.5° | 64.5° | 64.5° |
| A - Head Tube Angle - XLOW | 63.9° | 63.9° | 63.9° | 63.9° |
| B - Seat Tube Angle - LOW | 75.6° | 75.6° | 75.6° | 75.6° |
| B - Seat Tube Angle - XLOW | 74.8° | 74.8° | 74.8° | 74.8° |
| C - Virtual Top Tube Length - LOW | 599mm | 23.58" | 616mm | 24.25" | 637mm | 25.09" | 659mm | 25.94" |
| C - Virtual Top Tube Length - XLOW | 602mm | 23.69" | 619mm | 24.36" | 640mm | 25.02" | 661mm | 26.04" |
| D - Seat Tube Length | 390mm | 15.35" | 425mm | 16.73" | 460mm | 18.11" | 495mm | 19.49" |
| E - Bottom Bracket Height - LOW | 355mm | 13.98" | 355mm | 13.98" | 355mm | 13.98" | 355mm | 13.98" |
| E - Bottom Bracket Height - XLOW | 347mm | 13.65" | 347mm | 13.65" | 347mm | 13.65" | 347mm | 13.65" |
| F - Bottom Bracket Drop - LOW | 18mm | 0.70" | 18mm | 0.70" | 18mm | 0.70" | 18mm | 0.70" |
| F - Bottom Bracket Drop - XLOW | 26mm | 1.03" | 26mm | 1.03" | 26mm | 1.03" | 26mm | 1.03" |
| G - Head Tube Length | 104mm | 4.09" | 114mm | 4.49" | 127mm | 5.00" | 139mm | 5.47" |
| H - Chain Stay Length - LOW | 442mm | 17.40" | 442mm | 17.40" | 442mm | 17.40" | 442mm | 17.40" |
| H - Chain Stay Length - XLOW | 444mm | 17.49" | 4444mm | 17.49" | 444mm | 17.49" | 444mm | 17.49" |
| I - Wheel Base - LOW | 1217mm | 47.89" | 1238mm | 48.73" | 1263mm | 49.73" | 1288mm | 50.72 |
| I - Wheel Base - XLOW | 1219mm | 47.99" | 1240mm | 48.82" | 1265mm | 49.80" | 1290mm | 50.79 |
| J - Axle to Crown | 586mm | 23.07" | 586mm | 23.07" | 586mm | 23.07" | 586mm | 23.07" |
| K - Offset | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" | 44mm | 1.73" |
| L - Front to Center - LOW | 775mm | 30.51" | 796mm | 31.34" | 822mm | 32.34" | 847mm | 33.33" |
| L - Front to Center - XLOW | 775mm | 30.51" | 796mm | 31.34" | 822mm | 32.34" | 847mm | 33.33" |
| M - Trail - LOW | 129mm | 5.06" | 129mm | 5.06" | 129mm | 5.06" | 129mm | 5.06" |
| M - Trail - XLOW | 133mm | 5.25" | 133mm | 5.25" | 133mm | 5.25" | 133mm | 5.25" |
| N - Stack - LOW | 626mm | 24.64" | 635mm | 25.00" | 647mm | 25.47" | 658mm | 25.90" |
| N - Stack - XLOW | 631mm | 24.82" | 640mm | 25.19" | 651mm | 25.63" | 663mm | 26.10" |
| O - Reach - LOW | 438mm | 17.23" | 455mm | 17.90" | 475mm | 18.68" | 495mm | 19.47" |
| O - Reach - XLOW | 431mm | 16.96" | 448mm | 17.63" | 468mm | 18.42" | 488mm | 19.20" |
| P - Standover - LOW | 727mm | 28.60" | 727mm | 28.60" | 727mm | 28.60" | 735mm | 28.94" |
| P - Standover - XLOW | 721mm | 28.40" | 721mm | 28.40" | 721mm | 28.40" | 729mm | 28.70" |
| Available Sizes | Small, Medium, Large, XLarge |
| Available Colors | Wasabi Shadow |
| Wheel Travel | 166mm |
| Rear Shock | Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320 |
| Shock Hardware | Trunnion Upper, 20x8mm Lower |
| Fork Axle to Crown | 586mm (Rockshox ZEB Ultimate 170mm 29") |
| Fork Offset | 44mm |
| Headtube | Tapered 1 1/8" - 1 1/2" |
| Headset | Cane Creek 40 Series IS42 - IS52, Upper ZS/44 Lower ZS/62mm Tapered OD |
| Seatpost Diameter | 30.9.mm |
| Seatclamp Diameter | 34.9mm |
| Rear Wheel Diameter | 29" |
| Maximum Rear Tire Size | 29x2.6" (Varies By Brand) |
| Chainline | 56.5mm |
| Chainguide Mount | Proprietary upper mount for Evil Epocalypse chai guide |
| Maximum Chainring Size | 36t Single Ring |
| Minimum Chainring Size | 34T |
| Rear Wheel Spacing | 157mm x 12mm |
| Motor Mount | Shimano DU-Ep800 |
| Brake Mount Type | Post Mount 200mm |
| Maximum Rear Rotor Size | 220mm |
ROCKSHOX SUPER DELUXE:
30% sag provides a smoother ride. 25% sag provides a stiffer ride
NOTE: These are just guidelines to start you on your suspension tuning journey. It's very important to tune your front and rear suspension together to get the best set up possible. Play around and find that special tune, then write it down so you don’t forget!
The dual progressive leverage rate curve might make some spring rates seem stiff, we encourage you to try different rates that will allow you to sit deeper into the suspension travel and find that perfect set up.
| RIDER WEIGHT | 30% SAG | 25% SAG |
|---|---|---|
| <140lbs | 300lbs | |
| 140lbs - 155lbs | 300lbs | 350lbs |
| 155lbs - 185lbs | 350lbs | 400lbs |
| 185lbs - 200lbs | 400lbs | 450lbs |
| 200lbs - 215lbs | 450lbs | 500lbs |
| 215lbs - 240lbs | 500lbs | 550lbs |
| 240lbs - 260lbs | 550lbs | 600lbs |
| 260lbs - 285lbs | 600lbs | -- |
SHIMANO EP801 MOTOR FAQ
Can I change the maximum speed? Nope. The Epocalypse is a class 1 electric bicycle. It is equipped with a motor that assists only while the rider is pedaling until the bicycle reaches 20 mph in the US or 25 km/h in Europe.
Can I customize the EP801 motor? The Shimano EP801 system was built with total control and customization in mind. No matter what type of rider you are or terrain you’re tackling, the EP801 system can be finely tuned to work for you. Shimano’s E-TUBE software allows you to connect a smartphone to your bike via Bluetooth so you can tweak assistance characteristics, functions of the assist switch, and the computer interface right from your phone. You can customize each power assist level (Eco, Boost, and Trail), within 10 levels of assist character over two custom profiles that are all suited for your style. Further information surrounding the E-TUBE PROJECT app can be found on the Shimano E-TUBE PROJECT website.
How do I activate Walk mode? To activate walk mode, first switch to OFF mode and then dismount the bike. While in OFF mode, press and hold the down trigger of the assist switch until WALK mode displays. Release the down trigger, push down again and hold until WALK mode is activated. The rear wheel will start moving slowly. WALK support will only be active while the trigger is depressed and only up to 2.5 mph or 4 kmh.
How do I update the bike’s firmware? You can find the latest firmware releases on the E-Tube projects website
Is the EP801 motor and system waterproof? The Epocalypse and Shimano EP8 system was designed to get dirty, and we highly encourage getting out and riding in the rain. Ensure all Shimano EP801 system components are installed correctly, including the battery and battery door. Avoid using a pressure washer to clean your bike or directly spraying any of the electronic interfaces and components on the bike.
What can I do if my bike’s computer won’t turn on? First, ensure that you have attempted to charge the battery. Secondly, double check all wire connections at the computer display port. Once confirmed, try removing the battery and then reinstalling. Finally, try charging the battery again. If this does not help, please contact an authorized Shimano dealer.
How often does the motor need to be maintained? How often does the motor need to be maintained?
How much does the EP801 drive unit weigh? Approximately 5.5 lbs.
SHIMANO EP801 BATTERY FAQ
Will the battery come juiced up and ready to roll? The EP801 630Wh battery ships in SLEEP mode with a 30% partial charge. The battery must be fully charged prior to the first use.
How long does it take to charge the battery? Your Epocalypse comes with a Shimano EC-8004-2 charger (or Shimano EC-8004-1 charger for EU). It takes approximately 6 hours to completely charge your BT-E8036 Shimano Battery.
Can I ride the Epocalypse with the battery removed? Riding your Epocalypse with the battery and battery door removed will leave the frame and EP8 components open to contaminants and void the warranty of your bike.
Will my battery capacity decrease over time? Generally, the battery will decrease by approximately 5% a year. Which means about 95% capacity remains after year one, and 90% after year 2. After 1000 cycles of charging, your battery will hold 60% of its original capacity.
What happens if my battery dies while I am on a ride? All good things must come to an end. This happens to the best of us. Feel free to pedal the old-fashioned way to get yourself home.
Is the battery waterproof? Even though your Shimano battery is waterproof, please do not submerge or directly spray any electronic components with water.
What is the optimal time to charge the battery? Your battery does not need to be fully exhausted to require a charge. Charging your bike with a partial charge will actually extend the life of your battery.
How far can I go on one charge? Are there ways to extend battery range? There are many variables that determine the range of your battery. These can include rider weight, wind, terrain type, and the assist level being used. Generally, less drive unit support will extend your battery life throughout a ride.
How does temperature affect the battery charge? Only charge The Epocalypse in a dry, temperate place. Do not charge The Epocalypse in rain, snow, or excessive heat or cold. Do not charge the Epocalypse overnight or for extended periods of time after the battery has reached a full charge. This could cause damage to the battery and/or charger.
How much does the Shimano BT-E8036 battery weigh? Approximately 7.7 lbs.
Where is the best place for long-term battery storage? Store your battery in your Epocalypse in a cool, dry, indoor location with a stable temperature between 50 and 70 degrees Fahrenheit. Avoid direct exposure to sunlight or rain. Wet conditions can cause corrosion in certain metal components on your bicycle. Charge battery to around 70% before storing. Every six months, charge the battery back up to around 70%. Before using the battery again, charge it completely.
What should I do if my battery is damaged? If the battery becomes damaged, do not charge, use, or transport it in any way. Although highly unlikely, use a class D fire extinguisher to extinguish any flames from a battery fire.
EPOCALYPSE FRAME FAQ
Can I run a 27.5” or 27.5+ rear wheel? The Epocalypse was designed to support a 29inch rear wheel. Running a 27.5+ wheel and tire does not allow for proper tire clearance and this setup will void your Epocalypse warranty.
What’s the max rear tire I can fit in the Epocalypse? The Epocalypse can fit up to a 29 x 2.6” rear tire.
What’s the max front tire width for the Zeb spec? The Rockshox Zeb can fit up to a 29 x 3.18” front tire.
Can I fit a water bottle in the frame? Yes. No two bottles or bottle cages fit in the same package, but here are some rough guidelines for bottle fitment on your Epocalypse.
Small Frame: Up to a 16 oz bottle (cage dependent)
Medium Frame: Up to a 20 oz bottle (cage dependent)
Large Frame: Standard 22oz Bottle
X-Large: Standard 22oz Bottle
SUSPENSION AND COMPONENT QUESTIONS
Can I mount a dual-crown fork on the Epocalypse? The Epocalypse does not allow for a dual-crown fork and using one will void the warranty.
What is the maximum dropper insertion for each frame size? No two droppers fit quite the same. Here is a general max insertion guide for each frame size.
Small: 170mm
Medium: 215mm
Large: 250mm
X-Large: 260mm
Reach out to Evil Bikes about specific dropper insertion depth questions.
Will both coil and air shocks work? The Epocalypse was designed to accommodate most modern coil and air shocks. Reach out to Evil Bikes to confirm specific shock fitment before installing.
OTHER FAQ
Where can I find the Epocalypse User Manual? The Epocalypse User Manual can be found here.
